| Product Name: |

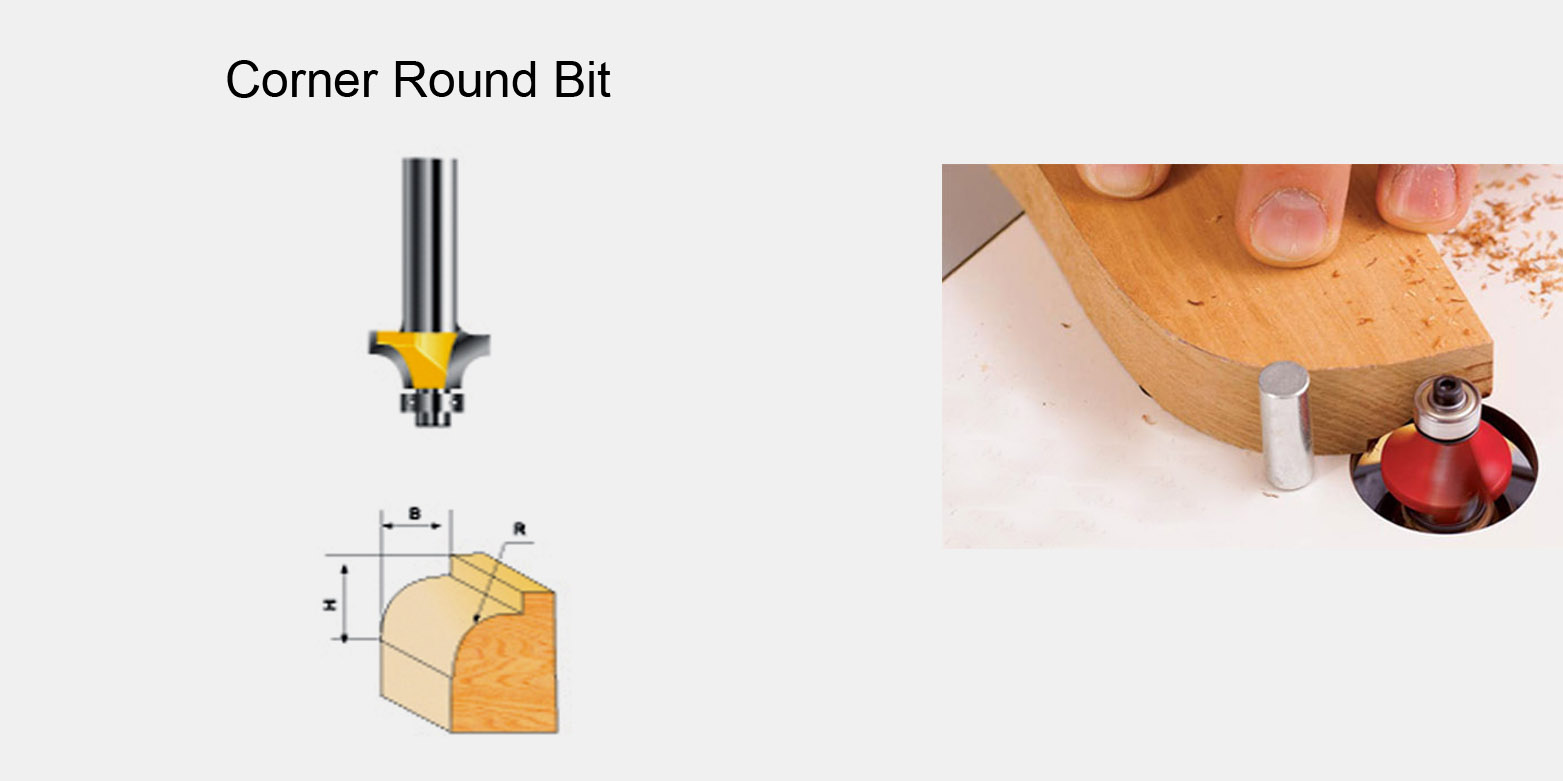

| Content: Corner Round Bit
|
AONE-05 Corner Round Bit |
|
Part No. |
Size |
D |
R |
B |
H |
|
AONE05001 |
1/4×3/16 |
13.76 |
2.38 |
2.38 |
5.38 |
|
AONE05002 |
1/4×1/4 |
15.35 |
3.17 |
3.17 |
7 |
|
AONE05003 |
1/4×5/16 |
20.94 |
3.97 |
3.97 |
8 |
|
AONE05004 |
1/4×3/8 |
22.5 |
4.76 |
4.76 |
9 |
|
AONE05005 |
1/4×1/2 |
25.7 |
6.35 |
6.35 |
11 |
|
AONE05006 |
1/4×5/8 |
28.88 |
9.96 |
9.96 |
12 |
|
AONE05007 |
1/4×3/4 |
32.05 |
9.52 |
9.52 |
15 |
|
AONE05008 |
1/4×7/8 |
35.2 |
11.1 |
11.1 |
16 |
|
AONE05009 |
1/4×1 |
38.4 |
12.7 |
12.7 |
18 |
|
AONE05010 |
1/2×3/16 |
13.76 |
2.38 |
2.38 |
5.38 |
|
AONE05011 |
1/2×1/4 |
15.35 |
3.17 |
3.17 |
7 |
|
AONE05012 |
1/2×5/16 |
20.94 |
3.97 |
3.97 |
8 |
|
AONE05013 |
1/2×3/8 |
22.5 |
4.76 |
4.76 |
9 |
|
AONE05014 |
1/2×1/2 |
25.7 |
6.35 |
6.35 |
11 |
|
AONE05015 |
1/2×5/8 |
28.88 |
7.96 |
7.96 |
12 |
|
AONE05016 |
1/2×3/4 |
32.05 |
9.52 |
9.52 |
15 |
|
AONE05017 |
1/2×7/8 |
25.2 |
11.1 |
11.1 |
16 |
|
AONE05018 |
1/2×1 |
38.4 |
12.7 |
12.7 |
18 |
|
AONE05019 |
1/2×1-1/8 |
43.58 |
14.29 |
14.29 |
20 |
|
AONE05020 |
1/2×1-1/4 |
46.75 |
15.9 |
15.9 |
22 |
|
AONE05021 |
1/2×1-3/8 |
49.93 |
17.46 |
17.46 |
23 |
|
AONE05022 |
1/2×1-1/2 |
53.1 |
19.05 |
19.05 |
25 |
|
AONE05023 |
1/2×1-5/8 |
56.26 |
20.64 |
20.64 |
25.95 |
|
AONE05024 |
1/2×1-3/4 |
59.45 |
22.23 |
22.23 |
29 |
|
AONE05025 |
1/2×1-7/8 |
62.63 |
23.81 |
23.81 |
29 |
|
AONE05026 |
1/2×2 |
65.8 |
25.4 |
25.4 |
32 |
|
AONE05027 |
1/2×2-1/8 |
68.97 |
26.98 |
26.98 |
33.4 |
|
AONE05028 |
1/2×2-1/4 |
72.15 |
28.58 |
28.58 |
34.1 |
|
AONE05029 |
1/2×2-3/8 |
75.32 |
30.16 |
30.16 |
36.7 |
|
AONE05030 |
1/2×2-1/2 |
78.5 |
31.75 |
31.75 |
38 |
|
AONE05031 |
1/2×2-5/8 |
81.67 |
33.33 |
33.33 |
39.8 |
|
AONE05032 |
1/2×2-3/4 |
84.85 |
34.93 |
34.93 |
41.5 |
|
AONE05033 |
1/2×2-7/8 |
88.02 |
36.51 |
36.51 |
43.1 |
|
AONE05034 |
1/2×3 |
91.2 |
38.1 |
38.1 |
44.97 | |
|
|
