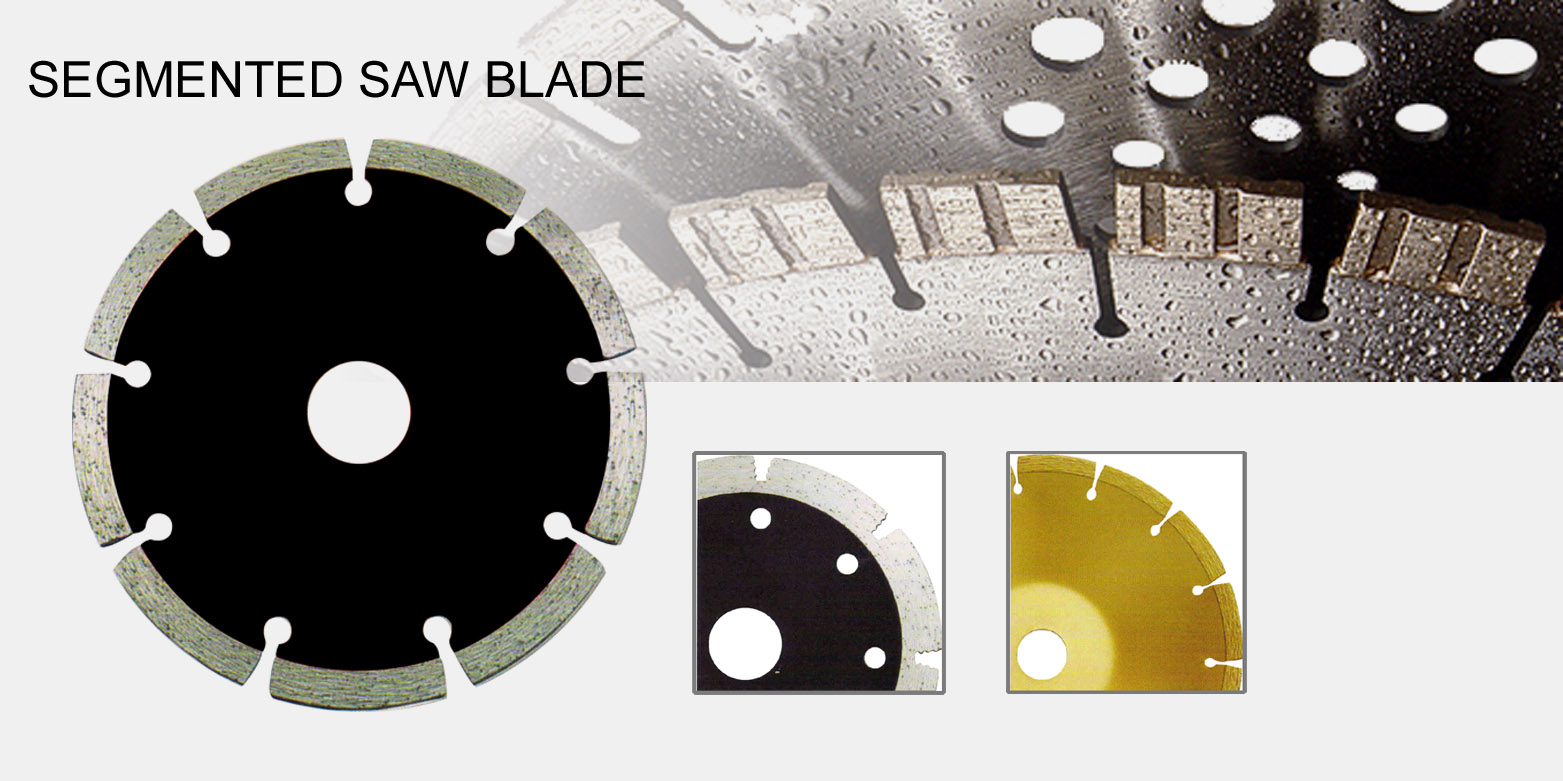

Sintered saw blades designed for hand held circular saws and most angle grindes.Provide

Fast.free,smooth cutting in tile,brick blocks,concrete,marble,soft granite,stone and many

Other materials.

l        Clold or hot pressing

l        Special for stone, and buildingmaterials.

Outerine Diameter		Arbor Size	Segment Dimension	Segment Number
Inches	Metric(MM)
4’’	105	16/20/22.23	35X1.8X7/10	8/9/16
4.3’’	110	16/20/22.23	32X1.9X7/10	8/9/12/16
4.5’’	115	20/22.23	38X2.0X7/10	8
5’’	125	20/22.23	37X2.0X7/10	9
6’’	150	20/22.23	34X2.0X7/10	12
7’’	180	22.23/25.4	35X2.2X7/10	14
8’’	200	22.23/25.4	39X2.4X7/10	14
9’’	230	22.23/25.4	34X2.4X7.2/10	16/18
10’’	250	22.23/25.4	37X3.0X7.5/10	18
12’’	300	20/22.23/25.4/50	35X3.2X7.5/10	22
14’’	350	22.23/25.4/50	40X3.2X7.5/10	24
16’’	400	22.23/25.4/50	40X3.6X7.5/10	28
