Content: SOLID SURFACE
8â€TO12â€

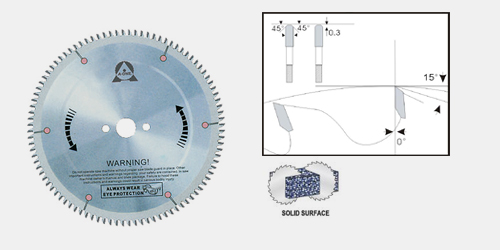

8°HOOK·SPECIAL TC-22 MODIFIED GRIND
This blade is designed for cutting plastic laminate and solid surface materials.
The carbide tips are ground in a triple chip geometry unique to this blade,
And leave a swirl-free cut in solid surface materlals.The thick,stable plate reduces
Vlbratlon that degrades the cut and shortens tool life.The blade is suitable for a variety
Of saw configurations.Its 0°hook angle virtually eliminates self-feeding when it is used
With a radial arm saw.
D |
Teeth |
Grind |
‘B’Kerf
lnch |
Tool No |
‘C’Plate
lnch |
Bore |
*P.H. |
lnch |
mm |
8 |
200 |
64 |
S-TCG |
.126 |
SS86401 |
.102 |
5/8†|
- |
- |
220 |
64 |
S-TCG |
.126 |
SS220T643 |
.102 |
30mm |
2/7/42 |
10 |
250 |
72 |
S-TCG |
.126 |
SS10721 |
.102 |
5/8†|
- |
12 |
300 |
84 |
S-TCG |
.126 |
SS12841-30 |
.102 |
30mm |
2/7/42&2/10/60 | |
